Wong-Wang SDE Full Model, Cupy

import os
import vbi
import torch
import warnings
import numpy as np
import pandas as pd
from cmaes import CMA
import networkx as nx
import sbi.utils as utils
from copy import deepcopy
from vbi.utils import timer
import multiprocessing as mp
import matplotlib.pyplot as plt
from vbi.sbi_inference import Inference
from vbi.models.cupy.ww import WW_sde
from vbi.feature_extraction.features_utils import get_fcd
from vbi import (
    extract_features,
    get_features_by_domain,
    get_features_by_given_names,
    update_cfg,
)

warnings.simplefilter("ignore")

seed = 42
np.random.seed(seed)
torch.manual_seed(seed);

LABESSIZE = 10
plt.rcParams["axes.labelsize"] = LABESSIZE
plt.rcParams["xtick.labelsize"] = LABESSIZE
plt.rcParams["ytick.labelsize"] = LABESSIZE

path = "output"
os.makedirs("output/ww_full", exist_ok=True)

def wrapper(par):
    ''' Wrapper function to run the WW_sde model with given parameters.'''
    par = deepcopy(par)
    sde = WW_sde(par)
    data = sde.run()
    S_t = data["t"]
    S_d = data["S"]
    bold_d = data["bold_d"]
    bold_t = data["bold_t"]
    if par["RECORD_S"]:
        return S_t, S_d, bold_t, bold_d
    else:
        return bold_t, bold_d

# --- define feature extraction configuration ---

cfg = get_features_by_domain("connectivity")
cfg = get_features_by_given_names(cfg, ["fcd_stat"])
cfg = update_cfg(cfg, "fcd_stat", parameters={"k": None, "win_len": 30, "TR": 0.5})
# report_cfg(cfg)

# --- load connectivity matrix ---

D = vbi.LoadSample(nn=88)
weights = D.get_weights()
nn = weights.shape[0]
print(f"number of nodes: {nn}")

number of nodes: 88

# --- Simulation Parameters ---

params = {
    "weights": weights,
    "engine": "cpu", # "gpu"
    "RECORD_S": False,
    "G_exc": 1.166,
    "ext_current": 0.09,
    "num_sim": 1,
    "sigma": 0.05,
    "t_cut": 0.5 * 60 * 1000.0,
    "t_end": 3 * 60 * 1000.0,
    "s_decimate": 10,
    "dt": 2.5,
    "tr": 300.0,
    "seed": seed,
    "dtype": "float32",
}

bold_t, bold_d = wrapper(params)
bold_d = np.transpose(bold_d, (2, 1, 0))

df = extract_features(
    bold_d, 1, cfg, n_workers=10, output_type="dataframe", verbose=False
)
print(df[["fcd_full_ut_std"]].values[0])

theta_true = [params["G_exc"], params["ext_current"]]
np.savez("output/ww_full/observation.npz", bold_t=bold_t, bold_d=bold_d, theta=theta_true)
df.to_csv("output/ww_full/observation.csv", index=False)

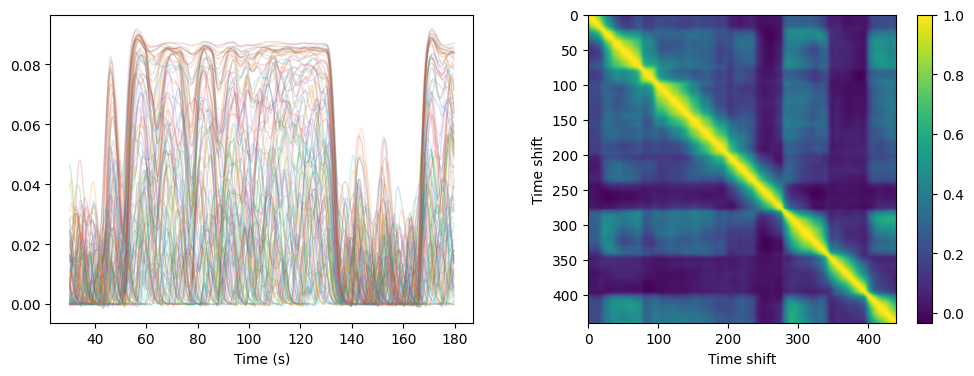

fcd = get_fcd(bold_d[0], win_len=30, TR=0.5)["full"]

plt.figure(figsize=(12, 4))
ax1 = plt.subplot(121)
ax1.plot(bold_t/1000, bold_d[0, ...].T, lw=1, alpha=0.2)
ax1.set_xlabel('Time (s)')
ax2 = plt.subplot(122)
im = ax2.imshow(fcd, cmap="viridis", aspect="equal")
plt.colorbar(im, ax=ax2)
plt.xlabel('Time shift')
plt.ylabel('Time shift')
plt.show()

To estimate G_exc and ext_current:

1. Set appropriate prior intervals.

2. Generate simulated training data.

3. Extract relevant features.

4. Train neural network to build posterior.

5. Sample from posterior distribution.

6. Visualize posterior distributions.

num_sim = 2*1024
gmin, gmax = 0., 2.0
imin, imax = 0.0, 1.0
prior_min = [gmin, imin]
prior_max = [gmax, imax]
prior = utils.torchutils.BoxUniform(
    low=torch.as_tensor(prior_min), high=torch.as_tensor(prior_max)
)

obj = Inference()
theta = obj.sample_prior(prior, num_sim, seed=seed)
torch.save(theta, os.path.join(path, "theta.pt"))

ext_current = theta[:, 1].numpy().squeeze()
G_exc = theta[:, 0].numpy().squeeze()

params = {
    "weights": weights,
    "engine": "gpu", # "gpu"
    "RECORD_S": False,
    "G_exc": 1.166,
    "ext_current": ext_current,
    "num_sim": num_sim,
    "sigma": 0.05,
    "t_cut": 0.5 * 60 * 1000.0,
    "t_end": 3 * 60 * 1000.0,
    "s_decimate": 10,
    "dt": 2.5,
    "tr": 300.0,
    "seed": seed,
    "dtype": "float32",
}

params["G_exc"] = G_exc
params["ext_current"] = ext_current

bold_t, bold_d = wrapper(params)
bold_d = np.transpose(bold_d, (2, 1, 0))
print(bold_d.shape, bold_t.shape)

df = extract_features(
    bold_d, 1, cfg, n_workers=10, output_type="dataframe", verbose=True
)

np.savez("output/ww_full/ww_sde_data.npz", bold_t=bold_t, bold_d=bold_d, theta=theta.numpy())
df.to_pickle("output/ww_full/ww_sde_features.pickle")

# drop columns with low variance, keep retained column indices
remained_columns = df.std() > 0.01
df = df.loc[:, remained_columns]
x = df.values
x = torch.tensor(x, dtype=torch.float32)
torch.save(x, "output/ww_full/ww_sde_features.pt")
torch.save(prior, "output/ww_full/prior.pt")

remained_columns.to_csv("output/ww_full/remained_columns.csv", index=False)

x.shape, theta.shape

(torch.Size([2048, 18]), torch.Size([2048, 2]))

obj = Inference()
posterior = obj.train(theta, x, prior, num_threads=8)
torch.save(posterior, "output/ww_full/posterior.pt")

df_obs = pd.read_csv("output/ww_full/observation.csv")
df_obs = df_obs.loc[:, remained_columns]
x_obs = torch.tensor(df_obs.values.squeeze(), dtype=torch.float32)

samples = obj.sample_posterior(x_obs, 10000, posterior)

from sbi.analysis import pairplot

limits = [[i, j] for i, j in zip(prior_min, prior_max)]
fig, ax = pairplot(
    samples,
    limits=limits,
    figsize=(5, 5),
    points=[theta_true],
    labels=["G_exc", "ext_current"],
    offdiag='kde',
    diag='kde',
    fig_kwargs=dict(
        points_offdiag=dict(marker="*", markersize=10),
        points_colors=["g"]),
    diag_kwargs={"mpl_kwargs": {"color": "r"}},
    upper_kwargs={"mpl_kwargs": {"cmap": "Blues"}},
)
