Montbrio SDE model using Numba

import os
import vbi
import torch
import warnings
import numpy as np
import pandas as pd
import networkx as nx
from copy import deepcopy
import sbi.utils as utils
from vbi.utils import timer
import multiprocessing as mp
import matplotlib.pyplot as plt
from vbi.models.numba.mpr import MPR_sde
from vbi.inference import Inference
%matplotlib inline

warnings.simplefilter("ignore")

seed= 42
np.random.seed(seed)

LABESSIZE = 10
plt.rcParams['axes.labelsize'] = LABESSIZE
plt.rcParams['xtick.labelsize'] = LABESSIZE
plt.rcParams['ytick.labelsize'] = LABESSIZE

path = "output/mpr_numba"
os.makedirs(path, exist_ok=True)

# @timer
def wrapper(g, par):
    par = deepcopy(par)
    sde = MPR_sde(par)
    control = {"G":g}
    data = sde.run(control)
    rv_t = data["rv_t"]
    rv_d = data["rv_d"]
    nn = par["weights"].shape[0]

    if par["RECORD_RV"]:
        r = rv_d[:, :nn]
        v = rv_d[:, nn:]

    bold_d = data["bold_d"]
    bold_t = data["bold_t"]

    if par["RECORD_RV"]:
        return rv_t, r, v, bold_t, bold_d
    else:
        return bold_t, bold_d

def plot(rv_t, r, v, bold_d, bold_t):
    step = 10
    fig, ax = plt.subplots(3, 1, figsize=(12, 6))
    ax[0].plot(rv_t[::step], r[::step, :], lw=0.1)
    ax[1].plot(rv_t[::step], v[::step, :], lw=0.1)
    ax[2].plot(bold_t, bold_d, lw=0.1)
    ax[0].set_ylabel("r")
    ax[1].set_ylabel("v")
    ax[2].set_ylabel("BOLD")

nn = 6
weights = nx.to_numpy_array(nx.complete_graph(nn))
params = {
    "G": 0.01,
    "weights": weights,
    "t_end": 10000,
    "dt": 0.01,
    "tau": 1.0,
    "eta": np.array([-4.6]),
    "rv_decimate": 10,  # in time steps
    "noise_amp": 0.037,
    "tr": 300.0,  # in [ms]
    "seed": 42,
    "RECORD_BOLD": True,
    "RECORD_RV": True,
}

warm up

rv_t, r, v, bold_t, bold_d =  wrapper(0.33, params)

# to check if there are any nans in the activities
np.isnan(r).sum()

0

params['t_end'] = 30_000
g = 0.33
rv_t, r, v, bold_t, bold_d = wrapper(g, params)

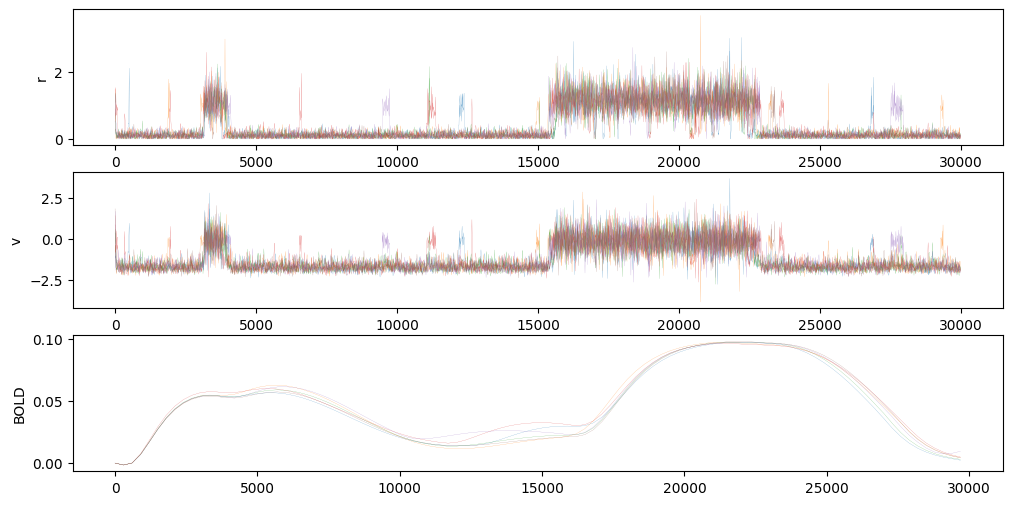

plot(rv_t, r, v, bold_d, bold_t)

np.diff(rv_t)[:2], np.diff(bold_t[:2]), rv_t[0], rv_t[1], rv_t[-1]

(array([1., 1.], dtype=float32),
 array([300.], dtype=float32),
 0.0,
 1.0,
 29999.0)

• Sweeping over \(G\).

• use multiprocessing to speed up.

g = np.linspace(0.3, 0.35, 4, endpoint=True)
with mp.Pool(processes=4) as p:
    results = p.starmap(wrapper, [(g_, params) for g_ in g])

len(results), len(results[0])

(4, 5)

# for i in range(4):
#     plot(results[i][0], results[i][1], results[i][2], results[i][4], results[i][3])

Whole connectome

D = vbi.LoadSample(nn=88)
weights = D.get_weights()
nn = weights.shape[0]
print(f"number of nodes: {nn}")

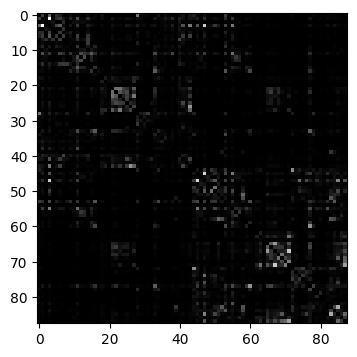

fig, ax = plt.subplots(1, 1, figsize=(4, 4.5))
ax.imshow(weights, cmap="gray", vmin=0, vmax=1);

number of nodes: 88

TR = 300.0
fs = 1 / (TR / 1000)
t_cut = 20
par = {
    "G": 0.506,  # global coupling strength
    "weights": weights,  # connection matrix
    "dt": 0.01,
    "t_cut": 20_000,
    "t_end": 100_000,  # [ms]
    "tr": TR,
    "rv_decimate": 10,
    "seed": seed,
    "RECORD_RV": True,
    "RECORD_BOLD": True,
}

obj = MPR_sde(par)
sol = obj.run()

rv_d = sol["rv_d"]
rv_t = sol["rv_t"] / 1000
fmri_d = sol["bold_d"]
fmri_t = sol["bold_t"] / 1000

rv_d = rv_d
rv_t = rv_t
fmri_d = fmri_d
fmri_t = fmri_t
print(np.isnan(fmri_d).sum(), np.isnan(rv_d).sum())

print(f"rv_t.shape = {rv_t.shape}")
print(f"rv_d.shape = {rv_d.shape}")
print(f"fmri_d.shape = {fmri_d.shape}")
print(f"fmri_t.shape = {fmri_t.shape}")

0 0
rv_t.shape = (100000,)
rv_d.shape = (100000, 176)
fmri_d.shape = (333, 88)
fmri_t.shape = (333,)

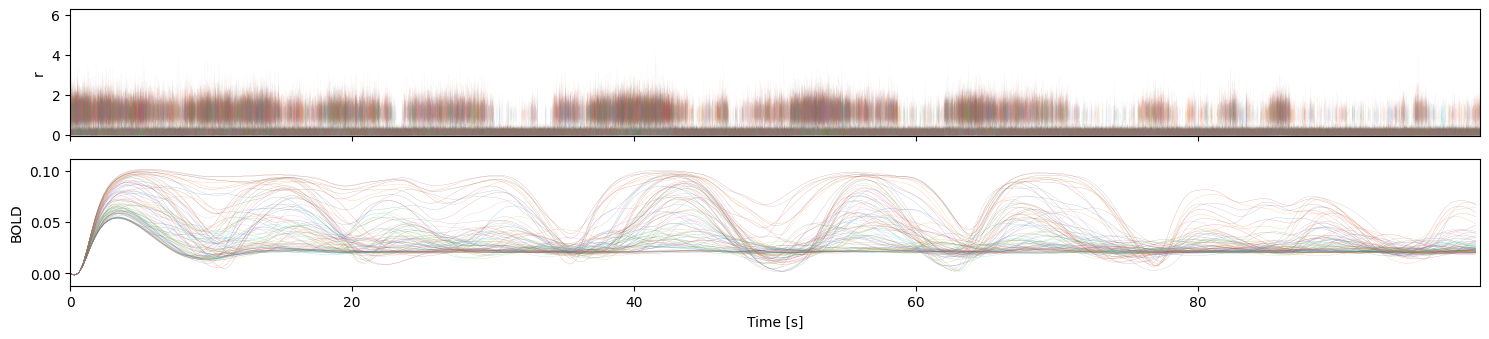

fig, ax = plt.subplots(2, figsize=(15, 3.5), sharex=True)
ax[1].set_ylabel("BOLD")
ax[1].plot(fmri_t, fmri_d[:,:], lw=0.1)
ax[1].margins(0, 0.1)
ax[0].plot(rv_t, rv_d[:, :nn], lw=0.1, alpha=0.1)
ax[0].set_ylabel("r")
ax[1].set_xlabel("Time [s]")
ax[0].margins(0, 0.01)
plt.tight_layout()
plt.show()

Feature extraction

from vbi import (
    get_features_by_domain,
    get_features_by_given_names,
    report_cfg,
    extract_features,
)

cfg = get_features_by_domain("connectivity")
cfg = get_features_by_given_names(cfg, ["fcd_stat"])
report_cfg(cfg)

Selected features:
------------------
■ Domain: connectivity
 ▢ Function:  fcd_stat
   ▫ description:  Extracts features from dynamic functional connectivity (FCD)
   ▫ function   :  vbi.feature_extraction.features.fcd_stat
   ▫ parameters :  {'TR': 1.0, 'win_len': 30, 'positive': False, 'eigenvalues': True, 'masks': None, 'verbose': False, 'pca_num_components': 3, 'quantiles': [0.05, 0.25, 0.5, 0.75, 0.95], 'features': ['sum', 'max', 'min', 'mean', 'std', 'skew', 'kurtosis']}
   ▫ tag        :  ['fmri', 'eeg', 'meg']
   ▫ use        :  yes

df = extract_features([fmri_d.T], fs, cfg, n_workers=10, output_type="dataframe", verbose=False)
df = df[["fcd_full_sum", "fcd_full_ut_std"]]
df

	fcd_full_sum	fcd_full_ut_std
0	16099.71875	0.097014

num_sim = 200
G_min, G_max = 0.0, 1.0

prior_min = [G_min]
prior_max = [G_max]
prior = utils.torchutils.BoxUniform(
    low=torch.as_tensor(prior_min), high=torch.as_tensor(prior_max)
)

obj = Inference()
theta = obj.sample_prior(prior, num_sim, seed=seed)
theta_np = theta.numpy().squeeze()

theta_np.shape

(200,)

TR = 300.0
fs = 1 / (TR / 1000)
t_cut = 20
par = {
    "G": 0.506,  # global coupling strength
    "weights": weights,  # connection matrix
    "dt": 0.01,
    "t_cut": 20_000,
    "t_end": 100_000,  # [ms]
    "tr": TR,
    "rv_decimate": 10,
    "seed": seed,
    "RECORD_RV": False,
    "RECORD_BOLD": True,
}

with mp.Pool(processes=10) as p:
    results = p.starmap(wrapper, [(g_, par) for g_ in theta_np])

bolds = [res[1].T for res in results]
bolds = np.array(bolds)
bolds.shape

(200, 88, 333)

df = extract_features(bolds, fs, cfg, n_workers=10, output_type="dataframe", verbose=True)
df.head(2)

100%|██████████| 200/200 [00:02<00:00, 69.61it/s]

	fcd_full_quantile_0.05	fcd_full_quantile_0.25	fcd_full_quantile_0.5	fcd_full_quantile_0.75	fcd_full_quantile_0.95	fcd_full_pca_sum	fcd_full_pca_max	fcd_full_pca_min	fcd_full_pca_mean	fcd_full_pca_std	...	fcd_full_eig_skew	fcd_full_eig_kurtosis	fcd_full_ut_sum	fcd_full_ut_max	fcd_full_ut_min	fcd_full_ut_mean	fcd_full_ut_std	fcd_full_ut_skew	fcd_full_ut_kurtosis	fcd_full_sum
0	-0.021312	-0.00909	0.003697	0.03069	0.700759	-2.842171e-14	3.802258	-2.59052	-3.116416e-17	1.609818	...	5.302009	28.855116	120.730682	0.352556	-0.060522	0.003205	0.025302	3.280647	20.693863	9331.612305
1	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN

2 rows × 27 columns

X = df[["fcd_full_sum", "fcd_full_ut_std"]].values
X = torch.as_tensor(X, dtype=torch.float32)

training NN and getting posterior

obj_inf = Inference()
posterior = obj_inf.train(theta, X, prior=prior, num_threads=4)

WARNING:root:Found 62 NaN simulations and 0 Inf simulations. They will be excluded from training.

 Neural network successfully converged after 161 epochs.train Done in 0 hours 0 minutes 04.574155 seconds

torch.save(posterior, os.path.join(path, "posterior.pt"))
np.savez(os.path.join(path, "data.npz"), theta=theta_np, X=X.numpy())
df.to_csv(os.path.join(path, "features.csv"), index=False)

# loading data
posterior = torch.load(os.path.join(path, "posterior.pt"), weights_only=False)
data = np.load(os.path.join(path, "data.npz"))
theta_np = data["theta"]
X = torch.as_tensor(data["X"], dtype=torch.float32)
df = pd.read_csv(os.path.join(path, "features.csv"))

plotting feature distributions

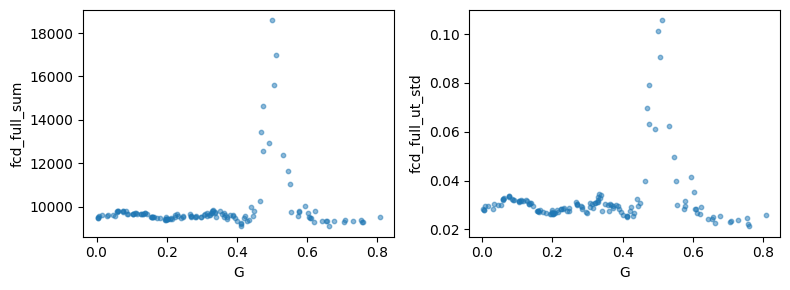

fig, ax = plt.subplots(1, 2, figsize=(8, 3))
ax[0].scatter(theta_np, X[:, 0], s=10, alpha=0.5)
ax[0].set_xlabel("G")
ax[0].set_ylabel("fcd_full_sum")
ax[1].scatter(theta_np, X[:, 1], s=10, alpha=0.5)
ax[1].set_xlabel("G")
ax[1].set_ylabel("fcd_full_ut_std")
plt.tight_layout()

1. choose a true value,

2. simulate for given configuration,

3. extract features from observation point

4. sample from posterior given observation point

5. store data

G_true = 0.5
bold_obs = wrapper(G_true, par)[1].T

# Check if there are any NaNs in the observed BOLD data
assert(np.isnan(bold_obs).sum() == 0)

x_obs = extract_features(
    [bold_obs], fs, cfg, n_workers=10, output_type="dataframe", verbose=False
)

x_obs = x_obs[["fcd_full_sum", "fcd_full_ut_std"]].values
samples = obj_inf.sample_posterior(x_obs, 5000, posterior)
torch.save(samples, os.path.join(path, "samples.pt"))

np.savez(os.path.join(path, "bold_obs.npz"), bold=bold_obs, G=G_true)

# data = np.load(os.path.join(path, "bold_obs.npz"))
# bold_obs = data["bold"]
# G_true = data["G"]
# samples = torch.load(os.path.join(path, "samples.pt"))

getting FC, FCD for visualisation

from vbi.feature_extraction.features_utils import get_fc, get_fcd

fc = get_fc(bold_obs)['full']
fcd = get_fcd(bold_obs, win_len=25)['full']

import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1 import make_axes_locatable

mosaic = """
AA
BC
"""

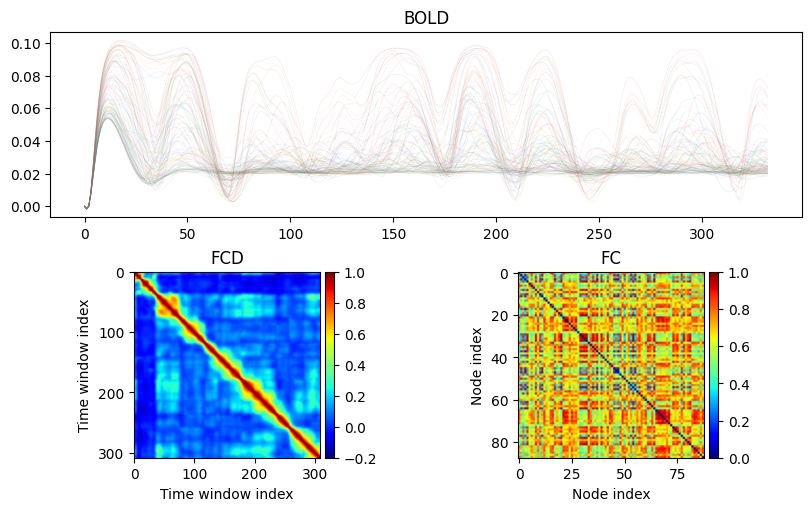

fig = plt.figure(constrained_layout=True, figsize=(8, 5))
ax_dict = fig.subplot_mosaic(mosaic)

# Plot data
ax_dict['A'].plot(bold_obs.T, lw=0.5, alpha=0.1)
im0 = ax_dict['B'].imshow(fcd, cmap="jet", vmin=-0.2, vmax=1)
im1 = ax_dict['C'].imshow(fc, cmap="jet", vmin=0, vmax=1)

divider0 = make_axes_locatable(ax_dict['B'])
cax0 = divider0.append_axes("right", size="5%", pad=0.05)
cbar0 = fig.colorbar(im0, cax=cax0)

divider1 = make_axes_locatable(ax_dict['C'])
cax1 = divider1.append_axes("right", size="5%", pad=0.05)
cbar1 = fig.colorbar(im1, cax=cax1)

# Set titles and labels
ax_dict['A'].set_title("BOLD")
ax_dict['B'].set_title("FCD")
ax_dict['B'].set_xlabel("Time window index")
ax_dict['B'].set_ylabel("Time window index")
ax_dict['C'].set_title("FC")
ax_dict['C'].set_xlabel("Node index")
ax_dict['C'].set_ylabel("Node index")

plt.show()

plotting posterior samples and comparing with true value in green.

from sbi.analysis import pairplot

limits = [[i, j] for i, j in zip(prior_min, prior_max)]
fig, ax = pairplot(
    samples,
    limits=limits,
    figsize=(5, 5),
    points=[G_true],
    labels=["G"],
    offdiag='kde',
    diag='kde',
    fig_kwargs=dict(
        points_offdiag=dict(marker="*", markersize=10),
        points_colors=["g"]),
    diag_kwargs={"mpl_kwargs": {"color": "r"}},
    upper_kwargs={"mpl_kwargs": {"cmap": "Blues"}},
)

fig.savefig(path+"/G.png", dpi=150)
