Montbrió–Pazó–Roxin (MPR) SDE — Simulation & Likelihood-Free Inference¶
Minimal example using Numba-accelerated MPR_sde from vbi. Sections are short and documented so you can convert to a notebook easily. External APIs remain unchanged; only our helper functions are refactored.
[ ]:
# Install VBI package in Google Colab (lightweight, CPU-only version)
print("Setting up VBI for Google Colab...")
# Skip C++ compilation for faster installation in Colab
%env SKIP_CPP=1
print("Environment configured.")
[ ]:
# Install the package
# !pip install vbi
[ ]:
print("VBI package installed successfully! Ready to proceed.")
Imports & Global Config¶
[1]:
import os
import warnings
from copy import deepcopy
import multiprocessing as mp
from multiprocessing import Pool
[2]:
import numpy as np
import pandas as pd
import networkx as nx
import matplotlib.pyplot as plt
from tqdm import tqdm
[3]:
import vbi
from vbi.models.numba.mpr import MPR_sde
[4]:
warnings.simplefilter("ignore")
print(f"vbi version: {vbi.__version__}")
vbi version: 0.3
[5]:
SEED = 42
np.random.seed(SEED)
[6]:
LABELSIZE = 10
plt.rcParams["axes.labelsize"] = LABELSIZE
plt.rcParams["xtick.labelsize"] = LABELSIZE
plt.rcParams["ytick.labelsize"] = LABELSIZE
[7]:
OUT_DIR = "output/mpr_sde_numba_cde_/"
os.makedirs(OUT_DIR, exist_ok=True)
If False: (re)generate data; if True: load from disk when available.
[8]:
LOAD_DATA = True
Simulation Helpers¶
[9]:
def simulate_once(G_value: float, params: dict):
"""
Run one MPR_sde simulation for a given global coupling G_value.
Returns
-------
If RECORD_RV:
rv_t, r, v, bold_t, bold_d
else:
bold_t, bold_d
"""
par = deepcopy(params)
sde = MPR_sde(par)
control = {"G": G_value}
data = sde.run(control)
rv_t = data["rv_t"]
rv_d = data["rv_d"]
bold_t = data["bold_t"]
bold_d = data["bold_d"]
if par["RECORD_RV"]:
n_nodes = par["weights"].shape[0]
r = rv_d[:, :n_nodes]
v = rv_d[:, n_nodes:]
return rv_t, r, v, bold_t, bold_d
else:
return bold_t, bold_d
[10]:
def simulate_batch(params: dict, controls, n_workers: int = 1):
"""
Run a batch of simulations in parallel with a progress bar.
Parameters
----------
params : dict
Parameter dictionary for MPR_sde.
controls : iterable
Iterable of control values (e.g., G grid).
n_workers : int
Number of parallel workers.
Returns
-------
list
List of results from `simulate_once`.
"""
n = len(controls)
def _update(_):
pbar.update()
with Pool(processes=n_workers) as pool:
with tqdm(total=n, desc="Running simulations") as pbar:
async_results = [
pool.apply_async(
simulate_once, args=(controls[i], params), callback=_update
)
for i in range(n)
]
results = [res.get() for res in async_results]
return results
[11]:
def plot_timeseries(rv_t, r, v, bold_t, bold_d, step: int = 10):
"""
Quick-look plots for state variables (r, v) and BOLD.
Parameters
----------
rv_t, bold_t : 1D arrays
Time vectors (ms for rv_t, ms for bold_t).
r, v, bold_d : arrays
State variables and BOLD data.
step : int
Decimation for line density when plotting r, v.
"""
fig, ax = plt.subplots(3, 1, figsize=(12, 6), sharex=True)
ax[0].plot(rv_t[::step], r[::step, :], lw=0.1)
ax[1].plot(rv_t[::step], v[::step, :], lw=0.1)
ax[2].plot(bold_t, bold_d, lw=0.1)
ax[0].set_ylabel("r")
ax[1].set_ylabel("v")
ax[2].set_ylabel("BOLD")
ax[2].set_xlabel("Time [ms]")
ax[0].margins(x=0.01)
plt.tight_layout()
Toy Network Warm-Up (Complete Graph, n=6)¶
[12]:
n_nodes = 6
W = nx.to_numpy_array(nx.complete_graph(n_nodes))
[13]:
params = {
"G": 0.01,
"weights": W,
"t_end": 10_000,
"t_cut": 1_000,
"dt": 0.01,
"tau": 1.0,
"eta": np.array([-4.6]),
"rv_decimate": 10, # in time steps
"noise_amp": 0.037,
"tr": 300.0, # ms
"seed": SEED,
"RECORD_BOLD": True,
"RECORD_RV": True,
}
Warm-up run (sanity check)
[14]:
rv_t, r, v, bold_t, bold_d = simulate_once(0.33, params)
print("NaNs in r:", np.isnan(r).sum())
NaNs in r: 0
Longer run for visualization

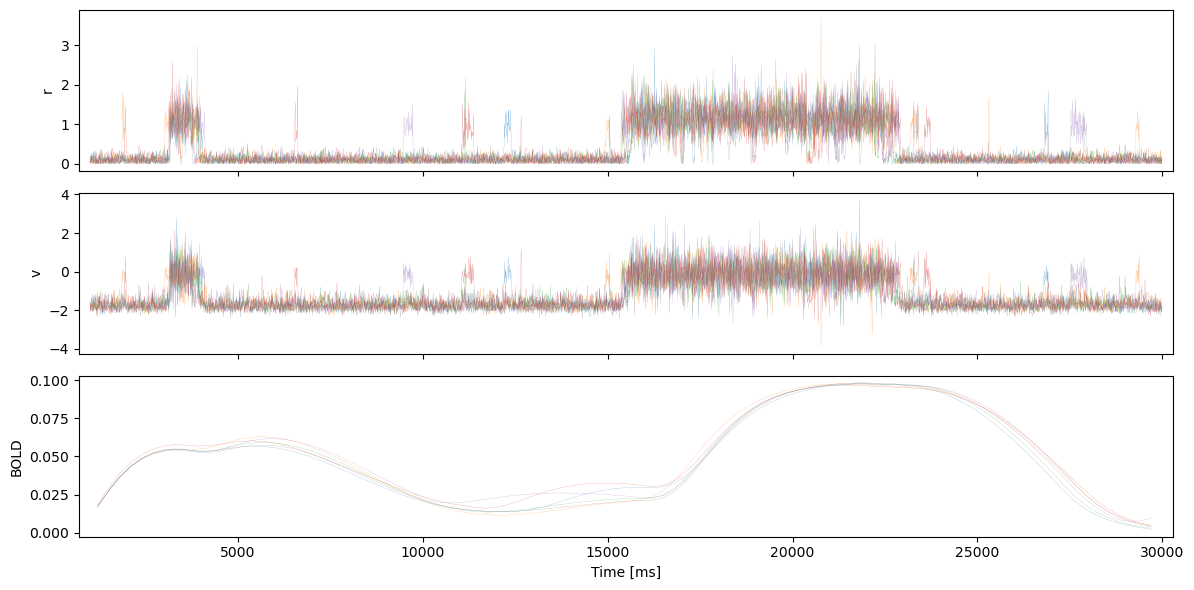

[15]:
params["t_end"] = 30_000
G0 = 0.33
rv_t, r, v, bold_t, bold_d = simulate_once(G0, params)
plot_timeseries(rv_t, r, v, bold_t, bold_d)
Check time steps
[16]:
print(np.diff(rv_t)[:2], np.diff(bold_t[:2]), rv_t[0], rv_t[1], rv_t[-1])
[1. 1.] [300.] 1000.0 1001.0 29999.0
Parameter Sweep over G (Multiprocessing)¶
[17]:
G_grid = np.linspace(0.30, 0.35, 4, endpoint=True)
sweep_results = simulate_batch(params, G_grid, n_workers=4)
print("Num sweeps, shape of one result:", len(sweep_results), len(sweep_results[0]))
# Example plotting:
# for i in range(len(G_grid)):
# rv_t, r, v, bold_t, bold_d = sweep_results[i]
# plot_timeseries(rv_t, r, v, bold_t, bold_d)
Running simulations: 100%|██████████| 4/4 [00:02<00:00, 1.59it/s]
Num sweeps, shape of one result: 4 5
Whole-Connectome Setup¶
[18]:
D = vbi.LoadSample(nn=84)
W_full = D.get_weights()
n_full = W_full.shape[0]
print(f"number of nodes: {n_full}")
number of nodes: 84

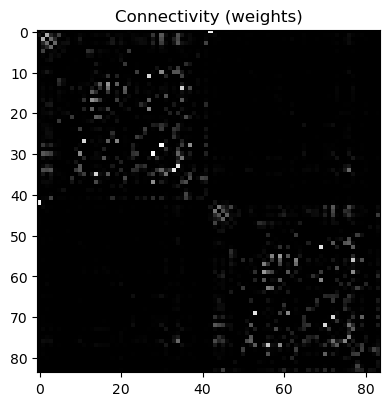

[19]:
fig, ax = plt.subplots(1, 1, figsize=(4, 4.5))
ax.imshow(W_full, cmap="gray", vmin=0, vmax=1)
ax.set_title("Connectivity (weights)")
plt.tight_layout()
[20]:
TR = 300.0 # ms
fs = 1 / (TR / 1000.0) # Hz
t_cut_sec = 20 # for labeling only
theta_true = 0.7
[21]:
par_obs = {
"G": theta_true,
"weights": W_full,
"dt": 0.01,
"t_cut": 20_000, # ms
"t_end": 100_000, # ms
"tr": TR,
"rv_decimate": 10,
"seed": SEED,
"RECORD_RV": True,
"RECORD_BOLD": True,
}
Generate or load observation
[23]:
if not LOAD_DATA or (not os.path.exists(OUT_DIR + "observation.npz")):
obj = MPR_sde(par_obs)
sol = obj.run()
rv_d = sol["rv_d"]
rv_t = sol["rv_t"] / 1000.0 # s
bold_d = sol["bold_d"]
bold_t = sol["bold_t"] / 1000.0 # s
print("NaNs:", np.isnan(bold_d).sum(), np.isnan(rv_d).sum())
print(f"rv_t.shape={rv_t.shape}, rv_d.shape={rv_d.shape}")
print(f"bold_d.shape={bold_d.shape}, bold_t.shape={bold_t.shape}")
np.savez(
OUT_DIR + "observation.npz",
xo=None, # placeholder; will fill after feature extraction
theta=theta_true,
bold_t=bold_t,
bold_d=bold_d,
rv_t=rv_t,
rv_d=rv_d,
)
else:
obs = np.load(OUT_DIR + "observation.npz")
bold_d = obs["bold_d"]
bold_t = obs["bold_t"]
rv_d = obs["rv_d"]
rv_t = obs["rv_t"]
NaNs: 0 0
rv_t.shape=(80000,), rv_d.shape=(80000, 168)
bold_d.shape=(266, 84), bold_t.shape=(266,)
Visualize Observation: States & BOLD¶

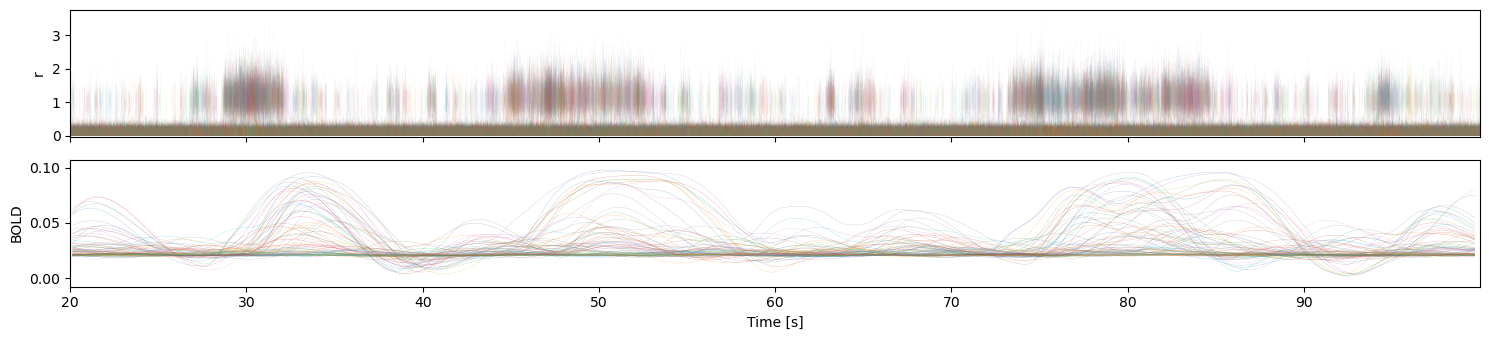

[24]:
fig, ax = plt.subplots(2, figsize=(15, 3.5), sharex=True)
ax[0].plot(rv_t, rv_d[:, :n_full], lw=0.1, alpha=0.1)
ax[1].plot(bold_t, bold_d[:, :], lw=0.1)
ax[0].set_ylabel("r")
ax[1].set_ylabel("BOLD")
ax[1].set_xlabel("Time [s]")
ax[0].margins(0, 0.01)
ax[1].margins(0, 0.1)
plt.tight_layout()
plt.show()
Feature Extraction (Connectivity Domain)¶
[25]:
from vbi import (
get_features_by_domain,
get_features_by_given_names,
report_cfg,
extract_features,
)
[26]:
feat_cfg = get_features_by_domain("connectivity")
feat_cfg = get_features_by_given_names(feat_cfg, ["fcd_stat"])
report_cfg(feat_cfg)
Selected features:
------------------
■ Domain: connectivity
▢ Function: fcd_stat
▫ description: Extracts features from dynamic functional connectivity (FCD)
▫ function : vbi.feature_extraction.features.fcd_stat
▫ parameters : {'TR': 1.0, 'win_len': 30, 'positive': False, 'eigenvalues': True, 'masks': None, 'verbose': False, 'pca_num_components': 3, 'quantiles': [0.05, 0.25, 0.5, 0.75, 0.95], 'k': None, 'features': ['sum', 'max', 'min', 'mean', 'std', 'skew', 'kurtosis']}
▫ tag : ['fmri', 'eeg', 'meg']
▫ use : yes
[27]:
df_obs = extract_features(
[bold_d.T],
fs,
feat_cfg,
n_workers=mp.cpu_count(),
output_type="dataframe",
verbose=False,
)
Keep a compact feature set
[28]:
df_obs = df_obs[["fcd_full_sum", "fcd_full_ut_std"]]
x_obs = df_obs.values
df_obs.head(1)
[28]:
| fcd_full_sum | fcd_full_ut_std | |
|---|---|---|
| 0 | 8933.09375 | 0.054202 |
Update observation file with features
[29]:
obs_path = OUT_DIR + "observation.npz"
obs_file = np.load(obs_path)
np.savez(
obs_path,
xo=x_obs,
theta=obs_file["theta"],
bold_t=obs_file["bold_t"],
bold_d=obs_file["bold_d"],
rv_t=obs_file["rv_t"],
rv_d=obs_file["rv_d"],
)
Prior & Training Data Generation¶
[30]:
from vbi.utils import BoxUniform
[31]:
num_sim = 200
G_min, G_max = 0.0, 1.0
[32]:
prior_min = [G_min]
prior_max = [G_max]
prior = BoxUniform(low=prior_min, high=prior_max)
theta = prior.sample((num_sim,), seed=SEED)
[33]:
par_train = {
"G": 0.506, # initial G; per-run control overrides this
"weights": W_full,
"dt": 0.01,
"t_cut": 20_000,
"t_end": 100_000, # ms
"tr": TR,
"rv_decimate": 10,
"seed": SEED,
"RECORD_RV": False,
"RECORD_BOLD": True,
}
[35]:
if not LOAD_DATA or (not os.path.exists(OUT_DIR + "bolds.npz")):
sim_results = simulate_batch(par_train, theta.squeeze(), n_workers=mp.cpu_count())
# Each result: (bold_t, bold_d) because RECORD_RV=False
bold_list = [res[1].T for res in sim_results]
bold_arr = np.array(bold_list)
print("bold_arr.shape:", bold_arr.shape)
np.savez(OUT_DIR + "bolds.npz", bolds=bold_arr, theta=theta)
else:
bold_arr = np.load(OUT_DIR + "bolds.npz")["bolds"]
Running simulations: 100%|██████████| 200/200 [08:24<00:00, 2.52s/it]
bold_arr.shape: (200, 84, 266)
[36]:
df_train = extract_features(
bold_arr, fs, feat_cfg, n_workers=mp.cpu_count(), output_type="dataframe", verbose=True
)
X = df_train[["fcd_full_sum", "fcd_full_ut_std"]].values
np.savez(OUT_DIR + "training_data.npz", theta=theta, X=X)
100%|██████████| 200/200 [00:02<00:00, 92.63it/s]
Train Density Estimator (MAF) & Posterior Summary¶
[37]:
from vbi.utils import posterior_shrinkage_numpy, posterior_zscore_numpy
from vbi.cde import MAFEstimator
import autograd.numpy as anp
[38]:
rng = anp.random.RandomState(SEED)
maf = MAFEstimator(n_flows=4, hidden_units=64)
maf.train(theta.astype(np.float32), X.astype(np.float32), n_iter=1000, learning_rate=2e-4)
Inferred dimensions: param_dim=1, feature_dim=2
Training: 53%|█████▎ | 531/1000 [00:08<00:07, 65.60it/s, patience=20/20, train=1.0555, val=1.0634]
[39]:
samples = maf.sample(x_obs, n_samples=5000, rng=rng)[0]
shrinkage = posterior_shrinkage_numpy(theta, samples)
zscore = posterior_zscore_numpy(theta_true, samples)
[40]:
print("True parameters: ", theta_true)
print("MAF mean estimate: ", np.mean(samples, axis=0))
print("Posterior shrinkage: ", np.array2string(shrinkage, precision=3, separator=", "))
print("Posterior z-score: ", np.array2string(zscore, precision=3, separator=", "))
True parameters: 0.7
MAF mean estimate: [0.7358813]
Posterior shrinkage: [0.951]
Posterior z-score: [0.552]
[41]:
np.savez(OUT_DIR + "samples.npz", samples=samples, xo=x_obs, theta_true=theta_true)

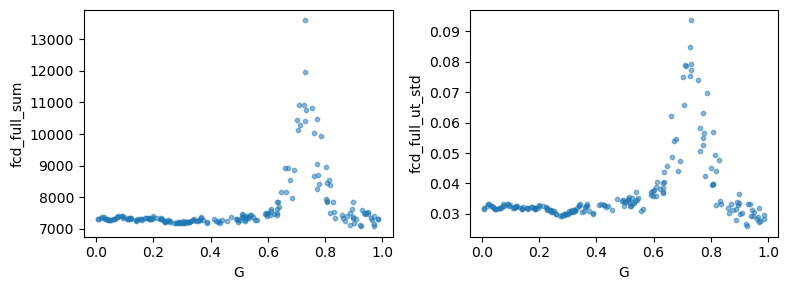

Feature–Parameter Scatter (Quick Diagnostic)¶
[42]:
fig, ax = plt.subplots(1, 2, figsize=(8, 3))
ax[0].scatter(theta, X[:, 0], s=10, alpha=0.5)
ax[0].set_xlabel("G")
ax[0].set_ylabel("fcd_full_sum")
ax[1].scatter(theta, X[:, 1], s=10, alpha=0.5)
ax[1].set_xlabel("G")
ax[1].set_ylabel("fcd_full_ut_std")
plt.tight_layout()

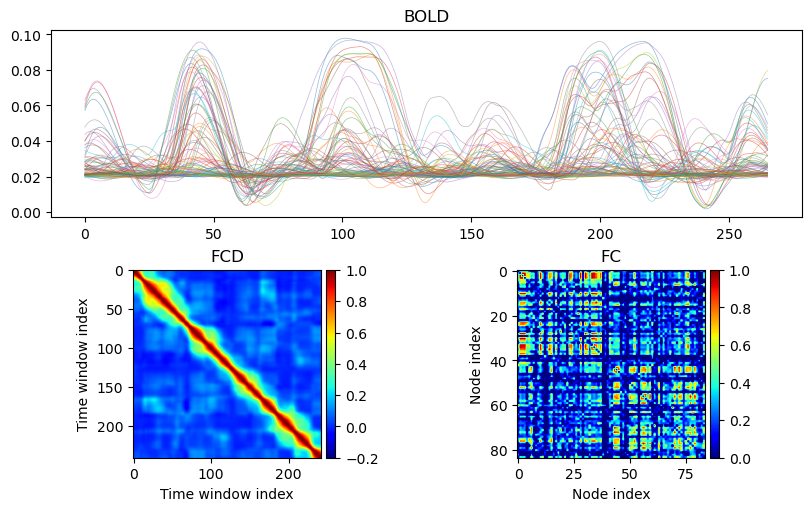

FC / FCD Visualization for Observation¶
[43]:
from vbi.feature_extraction.features_utils import get_fc, get_fcd
from mpl_toolkits.axes_grid1 import make_axes_locatable
[44]:
obs = np.load(OUT_DIR + "observation.npz")
bold_d = obs["bold_d"] # (T, N)
bold_t = obs["bold_t"] # (T,)
[45]:
FC = get_fc(bold_d.T)["full"]
FCD = get_fcd(bold_d.T, win_len=25)["full"]
[46]:
mosaic = """
AA
BC
"""
fig = plt.figure(constrained_layout=True, figsize=(8, 5))
axd = fig.subplot_mosaic(mosaic)
axd["A"].plot(bold_d, lw=0.5, alpha=0.5)
im0 = axd["B"].imshow(FCD, cmap="jet", vmin=-0.2, vmax=1)
im1 = axd["C"].imshow(FC, cmap="jet", vmin=0, vmax=1)
for key, im in [("B", im0), ("C", im1)]:
div = make_axes_locatable(axd[key])
cax = div.append_axes("right", size="5%", pad=0.05)
fig.colorbar(im, cax=cax)
axd["A"].set_title("BOLD")
axd["B"].set_title("FCD")
axd["B"].set_xlabel("Time window index")
axd["B"].set_ylabel("Time window index")
axd["C"].set_title("FC")
axd["C"].set_xlabel("Node index")
axd["C"].set_ylabel("Node index")
plt.show()
Posterior Plot (Pairplot)¶
[47]:
from vbi.plot import pairplot_numpy
[48]:
limits = [[lo, hi] for lo, hi in zip(prior_min, prior_max)]
fig, ax = pairplot_numpy(
samples,
limits=limits,
figsize=(5, 5),
points=np.array([theta_true]).reshape(1, -1),
labels=["G"],
offdiag="kde",
diag="kde",
fig_kwargs=dict(points_offdiag=dict(marker="*", markersize=10), points_colors=["g"]),
diag_kwargs={"mpl_kwargs": {"color": "r"}},
)
plt.legend(["posterior", "True"], loc="upper left", fontsize=12, frameon=False)
fig.savefig(OUT_DIR + "/G.png", dpi=150)
[ ]:
