Wilson-Cowan SDE model in Numba¶
[1]:
import os
import vbi
import torch
import numpy as np
import networkx as nx
from copy import deepcopy
import sbi.utils as utils
import multiprocessing as mp
from scipy.signal import welch
import matplotlib.pyplot as plt
from sbi.analysis import pairplot
from vbi.sbi_inference import Inference
from vbi.models.numba.wilson_cowan import WC_sde
import warnings
warnings.filterwarnings("ignore")
[2]:
seed = 42
np.random.seed(seed)
[3]:
LABESSIZE = 10
plt.rcParams['axes.labelsize'] = LABESSIZE
plt.rcParams['xtick.labelsize'] = LABESSIZE
plt.rcParams['ytick.labelsize'] = LABESSIZE
To change the frequency of oscillations in this model, there are several key parameters to adjust:
Coupling strengths
Time constants
External inputs
Refractory periods
Sigmoid function parameters
Sweeping over External current to Excitatory population (P)
[4]:
ns = 30
P_values = np.linspace(0, 3, ns)
weights = np.array([[0, 1], [1, 0]], dtype=np.float32)
par = dict(
weights=weights,
dt=0.1,
t_end=2000.0,
t_cut=101.0,
noise_amp=0.001,
g_e=0.0,
g_i=0.0,
P=1.22,
RECORD_EI="EI",
decimate=1,
seed=seed,
)
obj = WC_sde(par)
print(obj)
==============================================================================================================
WC_sde_numba
==============================================================================================================
Model Parameters:
--------------------------------------------------------------------------------------------------------------
Parameter | Description | Value/Shape | Type
--------------------------------------------------------------------------------------------------------------
P | External input to excitatory population | shape (2,) | vector
Q | External input to inhibitory population | shape (2,) | vector
RECORD_EI | Which populations to record: "E", "I"... | "EI" | string
a_e | Excitatory sigmoid slope parameter | 1.3 | scalar
a_i | Inhibitory sigmoid slope parameter | 2.0 | scalar
alpha_e | Excitatory gain parameter | 1.0 | scalar
alpha_i | Inhibitory gain parameter | 1.0 | scalar
b_e | Excitatory sigmoid threshold parameter | 4.0 | scalar
b_i | Inhibitory sigmoid threshold parameter | 3.7 | scalar
c_e | Excitatory sigmoid maximum output | 1.0 | scalar
c_ee | Excitatory to excitatory synaptic str... | shape (2,) | vector
c_ei | Inhibitory to excitatory synaptic str... | shape (2,) | vector
c_i | Inhibitory sigmoid maximum output | 1.0 | scalar
c_ie | Excitatory to inhibitory synaptic str... | shape (2,) | vector
c_ii | Inhibitory to inhibitory synaptic str... | shape (2,) | vector
decimate | Decimation factor for output | 1 | int
dt | Integration time step (ms) | 0.1 | scalar
g_e | Excitatory global coupling strength | 0.0 | scalar
g_i | Inhibitory global coupling strength | 0.0 | scalar
initial_state | Initial state vector (2*nn) | shape (0,) | vector
k_e | Excitatory maximum response parameter | 0.994 | scalar
k_i | Inhibitory maximum response parameter | 0.999 | scalar
noise_amp | Amplitude of additive Gaussian noise | 0.001 | scalar
r_e | Excitatory refractoriness parameter | 1.0 | scalar
r_i | Inhibitory refractoriness parameter | 1.0 | scalar
seed | Random seed for reproducibility (-1 f... | 42 | int
shift_sigmoid | Whether to use shifted sigmoid function | False | bool
t_cut | Initial time to discard (ms) | 101.0 | scalar
t_end | Simulation end time (ms) | 2000.0 | scalar
tau_e | Excitatory population time constant (ms) | shape (2,) | vector
tau_i | Inhibitory population time constant (ms) | shape (2,) | vector
theta_e | Excitatory firing threshold | 0.0 | scalar
theta_i | Inhibitory firing threshold | 0.0 | scalar
weights | Structural connectivity matrix (nn x nn) | shape (2, 2) | matrix
==============================================================================================================
[5]:
def wrapper(par, p):
sim = WC_sde(par)
sol = sim.run({'P': p})
return sol
with mp.Pool(processes=4) as pool:
results = pool.starmap(wrapper, [(par, p) for p in P_values])
results = [sol for sol in results if sol is not None]
t = results[0]["t"]
E = np.array([results[i]["E"] for i in range(len(results))])
I = np.array([results[i]["I"] for i in range(len(results))])
print(t.shape, E.shape, I.shape) # nsim, ntime, nnodes
(18990,) (30, 18990, 2) (30, 18990, 2)
Sweeping over Bifurcation parameter P
[6]:
f, P_E = welch(E[:, :, 0], fs=1/(par["dt"]*par['decimate']) * 1000, nperseg=8*1024, axis=1)
mosaic = """
AA
BC
"""
fig = plt.figure(constrained_layout=True, figsize=(10, 5))
ax = fig.subplot_mosaic(mosaic)
colors = plt.cm.Reds(np.linspace(0.1,1.0, ns))
for i in range(ns):
ax['A'].plot(t, E[i, :, 0], alpha=0.5, lw=0.5, color=colors[i])
for i in range(ns):
ax['B'].plot(f, P_E[i,:], alpha=0.5, lw=1, color=colors[i], label=f"{P_values[i]:.2f}")
for i in range(ns):
ax['C'].plot(E[i, :, 0], I[i, :, 0], lw=0.1, alpha=0.5, color=colors[i])
ax['B'].set_xlabel("Frequency")
ax['B'].set_ylabel("Power")
ax['B'].set_xlim(0, 100)
ax['C'].set_xlabel("E")
ax['C'].set_ylabel("I")
# ax['B'].legend(ncol=2)
plt.tight_layout()
[7]:

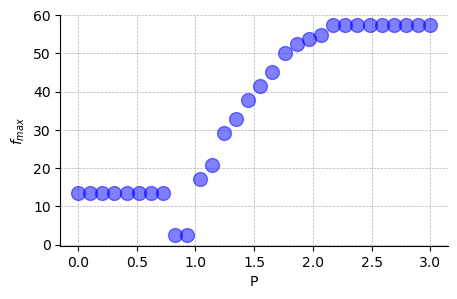

idx_max = np.argmax(P_E, axis=1)
fmax = f[idx_max]
fig, ax = plt.subplots(1, figsize=(5,3))
ax.plot(P_values, fmax, "bo", ms=10, alpha=0.5)
ax.grid(True, ls='--', lw=0.5)
ax.set_xlabel("P")
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.set_ylabel(r"$f_{max}$");
[8]:
weights = np.array([[0,1],[1,0]], dtype=np.float32)
P = 1.025
par = {
"g_e": 0.0,
"seed": 42,
"dt": 0.05,
"t_end": 2000.0,
"t_cut": 101.0,
"noise_amp": 0.0005, # add small amount of noise
"decimate": 1,
"P": P,
"RECORD_EI": "EI",
"weights": weights,
}
sim = WC_sde(par)
sol = sim.run()
t = sol["t"]
E = sol["E"]
I = sol["I"]
print(t.shape, E.shape, I.shape)
f, P_E = welch(E, fs=1/(par["dt"]*par['decimate']) * 1000, nperseg=5*1024, axis=0)
f, P_I = welch(I, fs=1/(par["dt"]*par['decimate']) * 1000, nperseg=5*1024, axis=0)

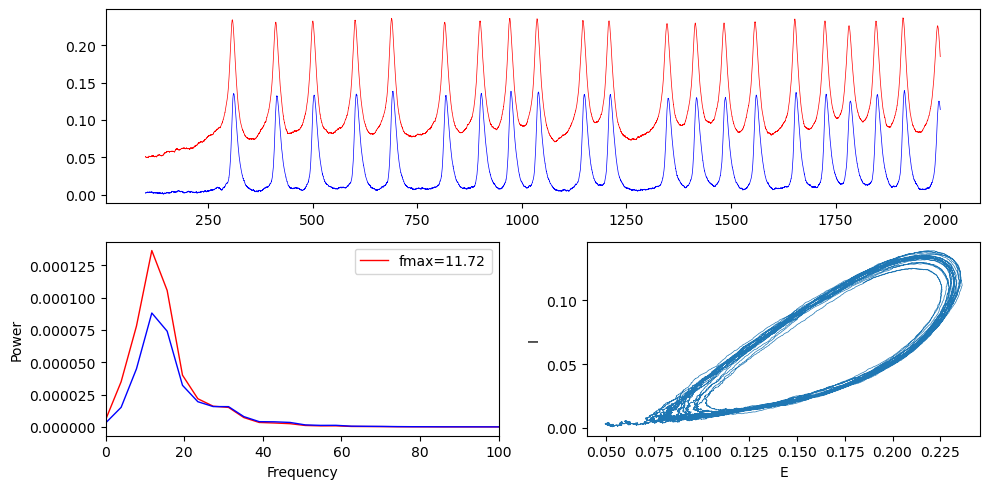

mosaic = """
AA
BC
"""
fig = plt.figure(constrained_layout=True, figsize=(10, 5))
ax = fig.subplot_mosaic(mosaic)
ax['A'].plot(t, E[:, 0], label="E", color="red", alpha=1, lw=0.5)
ax['A'].plot(t, I[:, 0], label="I", color="blue", alpha=1, lw=0.5)
ax['B'].plot(f, P_E[:, 0], label="E", color="red", alpha=1, lw=1)
ax['B'].plot(f, P_I[:, 0], label="I", color="blue", alpha=1, lw=1)
ax['B'].set_xlabel("Frequency")
ax["B"].set_ylabel("Power")
ax['B'].set_xlim(0, 100)
ax['C'].plot(E[:, 0], I[:, 0], lw=0.5)
ax['C'].set_xlabel("E")
ax['C'].set_ylabel("I");
f_max = f[np.argmax(P_E[:,0])]
ax['B'].legend([f"fmax={f_max:.2f}"])
plt.tight_layout()
(37980,) (37980, 2) (37980, 2)
Inference¶
Estimation of global coupling (\(g_e\))
[9]:
from vbi import (
report_cfg,
update_cfg,
extract_features,
extract_features_df,
get_features_by_domain,
get_features_by_given_names,
)
from helpers import *
[10]:
seed = 2
np.random.seed(seed)
torch.manual_seed(seed)
path = "output/wc_numba/"
os.makedirs(path, exist_ok=True)
[11]:
D = vbi.LoadSample(nn=84)
weights = D.get_weights()
nn = weights.shape[0]
print(f"number of nodes: {nn}")
fig, ax = plt.subplots(1, 1, figsize=(4, 4.5))
ax.imshow(weights, cmap="gray", vmin=0, vmax=1);
number of nodes: 84
[12]:
par = dict(
weights=weights,
dt=0.1,
t_end=2000.0,
t_cut=101.0,
noise_amp=0.001,
g_e=0.0,
g_i=0.0,
P=1.22,
RECORD_EI="EI",
decimate=1,
seed=seed,
)
sde = WC_sde(par)
print(sde)
==============================================================================================================
WC_sde_numba
==============================================================================================================
Model Parameters:
--------------------------------------------------------------------------------------------------------------
Parameter | Description | Value/Shape | Type
--------------------------------------------------------------------------------------------------------------
P | External input to excitatory population | shape (84,) | -
Q | External input to inhibitory population | shape (84,) | -
RECORD_EI | Which populations to record: "E", "I"... | "EI" | -
a_e | Excitatory sigmoid slope parameter | 1.3 | -
a_i | Inhibitory sigmoid slope parameter | 2.0 | -
alpha_e | Excitatory gain parameter | 1.0 | -
alpha_i | Inhibitory gain parameter | 1.0 | -
b_e | Excitatory sigmoid threshold parameter | 4.0 | -
b_i | Inhibitory sigmoid threshold parameter | 3.7 | -
c_e | Excitatory sigmoid maximum output | 1.0 | -
c_ee | Excitatory to excitatory synaptic str... | shape (84,) | -
c_ei | Inhibitory to excitatory synaptic str... | shape (84,) | -
c_i | Inhibitory sigmoid maximum output | 1.0 | -
c_ie | Excitatory to inhibitory synaptic str... | shape (84,) | -
c_ii | Inhibitory to inhibitory synaptic str... | shape (84,) | -
decimate | Decimation factor for output | 1 | -
dt | Integration time step (ms) | 0.1 | -
g_e | Excitatory global coupling strength | 0.0 | -
g_i | Inhibitory global coupling strength | 0.0 | -
initial_state | [Derived] Initial state vector | shape (0,) | -
k_e | Excitatory maximum response parameter | 0.994 | -
k_i | Inhibitory maximum response parameter | 0.999 | -
noise_amp | Amplitude of additive Gaussian noise | 0.001 | -
r_e | Excitatory refractoriness parameter | 1.0 | -
r_i | Inhibitory refractoriness parameter | 1.0 | -
seed | Random seed for reproducibility (-1 f... | 2 | -
shift_sigmoid | Whether to use shifted sigmoid function | False | -
t_cut | Initial time to discard (ms) | 101.0 | -
t_end | Simulation end time (ms) | 2000.0 | -
tau_e | Excitatory population time constant (ms) | shape (84,) | -
tau_i | Inhibitory population time constant (ms) | shape (84,) | -
theta_e | Excitatory firing threshold | 0.0 | -
theta_i | Inhibitory firing threshold | 0.0 | -
weights | Structural connectivity matrix (nn x nn) | shape (84, 84) | -
==============================================================================================================
[13]:
def preprocess(x):
# x = x - np.mean(x, axis=1, keepdims=True)
return x
def wrapper(par, p, cfg, return_labels=False):
sde = WC_sde(par)
sim = sde.run({"g_e": p})
stat_vec = extract_features(
[sim["E"].T],
fs=1.0 / par["dt"] / par["decimate"],
cfg=cfg,
preprocess=preprocess,
preprocess_args={},
n_workers=1,
verbose=False,
)
values = stat_vec.values
if return_labels:
labels = stat_vec.labels
return values[0], labels
return values[0]
[14]:
nperseg = 1024
cfg = get_features_by_domain(domain="spectral")
cfg = get_features_by_given_names(cfg, names=["spectrum_stats"])
cfg = update_cfg(
cfg,
"spectrum_stats",
parameters={
"fs": 1.0 / (par["dt"] * par["decimate"]) * 1000,
"method": "welch",
"nperseg": nperseg,
"average": True,
},
)
report_cfg(cfg)
Selected features:
------------------
■ Domain: spectral
▢ Function: spectrum_stats
▫ description: Computes the spectrum of the signal.
▫ function : vbi.feature_extraction.features.spectrum_stats
▫ parameters : {'fs': 10000.0, 'nperseg': 1024, 'indices': None, 'verbose': False, 'average': True, 'method': 'welch', 'features': ['spectral_distance', 'fundamental_frequency', 'max_frequency', 'max_psd', 'median_frequency', 'spectral_centroid', 'spectral_kurtosis', 'spectral_variation']}
▫ tag : all
▫ use : yes
[15]:
num_simulations = 500
g_min, g_max = 0.0, 1.0
prior_min = [g_min]
prior_max = [g_max]
prior = utils.BoxUniform(low=torch.tensor(prior_min), high=torch.tensor(prior_max))
obj = Inference()
theta = obj.sample_prior(prior, num_simulations, seed=seed)
theta_np = theta.numpy().squeeze()
[16]:
import tqdm
def batch_run(par, theta, cfg, n_workers=-1):
def update_bar(_):
pbar.update()
n = len(theta)
with mp.Pool(processes=n_workers) as pool:
with tqdm.tqdm(total=n) as pbar:
async_results = [pool.apply_async(wrapper,
args=(par, theta[i], cfg),
callback=update_bar)
for i in range(n)]
A = [r.get() for r in async_results]
return A
[17]:
values, labels = wrapper(par, theta_np[0], cfg, return_labels=True)
print(np.array(values).shape)
print(labels)
(8,)
['spectral_distance_0', 'fundamental_frequency_0', 'max_frequency_0', 'max_psd_0', 'median_frequency_0', 'spectral_centroid_0', 'spectral_kurtosis_0', 'spectral_variation_0']
[18]:
X = batch_run(par, theta_np, cfg, n_workers=10)
X = np.array(X)
1%| | 6/500 [00:01<01:23, 5.91it/s]Process ForkPoolWorker-9:
Process ForkPoolWorker-8:
Process ForkPoolWorker-10:
Process ForkPoolWorker-12:
Process ForkPoolWorker-6:
Process ForkPoolWorker-7:
Process ForkPoolWorker-13:
Process ForkPoolWorker-11:
Process ForkPoolWorker-14:
---------------------------------------------------------------------------
KeyboardInterrupt Traceback (most recent call last)
Cell In[18], line 1
----> 1 X = batch_run(par, theta_np, cfg, n_workers=10)
2 X = np.array(X)
Cell In[16], line 16, in batch_run(par, theta, cfg, n_workers)
11 with tqdm.tqdm(total=n) as pbar:
12 async_results = [pool.apply_async(wrapper,
13 args=(par, theta[i], cfg),
14 callback=update_bar)
15 for i in range(n)]
---> 16 A = [r.get() for r in async_results]
17 return A
Cell In[16], line 16, in <listcomp>(.0)
11 with tqdm.tqdm(total=n) as pbar:
12 async_results = [pool.apply_async(wrapper,
13 args=(par, theta[i], cfg),
14 callback=update_bar)
15 for i in range(n)]
---> 16 A = [r.get() for r in async_results]
17 return A
File ~/anaconda3/envs/vbidevelop/lib/python3.10/multiprocessing/pool.py:768, in ApplyResult.get(self, timeout)
767 def get(self, timeout=None):
--> 768 self.wait(timeout)
769 if not self.ready():
770 raise TimeoutError
File ~/anaconda3/envs/vbidevelop/lib/python3.10/multiprocessing/pool.py:765, in ApplyResult.wait(self, timeout)
764 def wait(self, timeout=None):
--> 765 self._event.wait(timeout)
File ~/anaconda3/envs/vbidevelop/lib/python3.10/threading.py:607, in Event.wait(self, timeout)
605 signaled = self._flag
606 if not signaled:
--> 607 signaled = self._cond.wait(timeout)
608 return signaled
File ~/anaconda3/envs/vbidevelop/lib/python3.10/threading.py:320, in Condition.wait(self, timeout)
318 try: # restore state no matter what (e.g., KeyboardInterrupt)
319 if timeout is None:
--> 320 waiter.acquire()
321 gotit = True
322 else:
KeyboardInterrupt:
[ ]:
X.shape
(500, 8)
[ ]:
fig, axes = plt.subplots(2, 4, figsize=(10, 6))
axes = axes.flatten()
for i in range(X.shape[1]):
axes[i].scatter(theta_np, X[:, i], s=3, alpha=0.5)
axes[i].set_xlabel(r"$g_e$")
axes[i].set_ylabel(labels[i])
plt.tight_layout()
[ ]:
import pandas as pd
# make a dataframe from features
df = pd.DataFrame(X, columns=labels)
df.head()
| spectral_distance_0 | fundamental_frequency_0 | max_frequency_0 | max_psd_0 | median_frequency_0 | spectral_centroid_0 | spectral_kurtosis_0 | spectral_variation_0 | |
|---|---|---|---|---|---|---|---|---|
| 0 | -49.635582 | 0.029297 | 0.029297 | 0.078133 | 0.039062 | 0.0 | 739.930969 | 0.317257 |
| 1 | -50.002735 | 0.029297 | 0.029297 | 0.078317 | 0.039062 | 0.0 | 733.733948 | 0.317122 |
| 2 | -62.859879 | 0.029297 | 0.029297 | 0.137202 | 0.029297 | 0.0 | 945.388855 | 0.455138 |
| 3 | -60.187119 | 0.029297 | 0.029297 | 0.124175 | 0.029297 | 0.0 | 870.633911 | 0.415954 |
| 4 | -46.423111 | 0.039062 | 0.039062 | 0.075966 | 0.039062 | 0.0 | 665.119324 | 0.293691 |
[ ]:
# drop features with small variance vs g_e
remaining_features = df.columns[df.var() > 1e-5].tolist()
remaining_indices = [df.columns.get_loc(col) for col in remaining_features]
remaining_features, remaining_indices
(['spectral_distance_0',
'fundamental_frequency_0',
'max_frequency_0',
'max_psd_0',
'median_frequency_0',
'spectral_kurtosis_0',
'spectral_variation_0'],
[0, 1, 2, 3, 4, 6, 7])
[ ]:
obj_inf = Inference()
X = torch.tensor(X[:, remaining_indices], dtype=torch.float32)
posterior = obj_inf.train(theta, X, prior, num_threads=4)
[ ]:
torch.save(posterior, os.path.join(path, "posterior.pt"))
[ ]:
theta_true = 0.27
x_observed = wrapper(par, theta_true, cfg)[remaining_indices]
[ ]:
x_observed
array([-6.1471275e+01, 2.9296875e-02, 2.9296875e-02, 1.2989835e-01,
2.9296875e-02, 8.9161023e+02, 4.3080187e-01], dtype=float32)
[ ]:
samples = obj_inf.sample_posterior(x_observed, 10000, posterior)
[ ]:
limits = [(prior_min[0], prior_max[0])]
points = [[theta_true]]
fig, ax = pairplot(
samples=samples,
limits=limits,
points=points,
figsize=(8, 6),
labels=[r"$g_e$"],
diag='kde',
fig_kwargs=dict(
points_offdiag=dict(marker="*", markersize=5),
points_colors=["g"]),
diag_kwargs={"mpl_kwargs": {"color": "r"}},
upper_kwargs={"mpl_kwargs": {"cmap": "Blues"}},
)
[ ]:
