VEP SDE CDE Example (84 Regions)¶
This notebook demonstrates simulation and inference for the VEP (Virtual Epileptic Patient) stochastic differential equation (SDE) model with 84 brain regions. It covers:
Setting up the model and parameters for healthy, propagation, and epileptic zones.
Running simulations and extracting features from the generated time series.
Performing parameter inference using a conditional density estimator (MAF).
Visualizing posterior samples and comparing observed vs predicted dynamics. The workflow is suitable for large-scale brain network modeling and probabilistic parameter estimation.
[ ]:
# Install VBI package in Google Colab (lightweight, CPU-only version)
print("Setting up VBI for Google Colab...")
# Skip C++ compilation for faster installation in Colab
%env SKIP_CPP=1
# Install the package
# !pip install vbi
print("VBI package installed successfully! Ready to proceed.")
Optional to limit CPU usage for some numpy core operations
[1]:
import os
NUM_CPU_CORES = 2
os.environ["OMP_NUM_THREADS"] = str(NUM_CPU_CORES)
os.environ["MKL_NUM_THREADS"] = str(NUM_CPU_CORES)
os.environ["OPENBLAS_NUM_THREADS"] = str(NUM_CPU_CORES)
os.environ["NUMEXPR_NUM_THREADS"] = str(NUM_CPU_CORES)
[2]:
import os
import tqdm
import pickle
import numpy as np
import networkx as nx
from os.path import join
from vbi import report_cfg
import matplotlib.pyplot as plt
from vbi.cde import MAFEstimator
from vbi.plot import pairplot_numpy
from vbi.models.numba.vep import VEP_sde
[3]:
seed = 2
np.random.seed(seed)
path = "output/vep_sde_numba_cde_84_"
os.makedirs(path, exist_ok=True)
[ ]:
# Download the weights file
# !mkdir -p data
# !wget https://raw.githubusercontent.com/ins-amu/vbi/main/docs/examples/data/weights1.txt -O data/weights1.txt
[4]:
weights = np.loadtxt("data/weights1.txt")
nn = weights.shape[0]
healthy zone, propagation zone, epileptic zone eta values
[5]:
hz_val = -3.65
pz_val = -2.4
ez_val = -1.6
[6]:
ez_idx = np.array([6, 34], dtype=np.int32)
pz_wplng_idx = np.array([5, 11], dtype=np.int32)
pz_kplng_idx = np.array([27], dtype=np.int32)
pz_idx = np.append(pz_kplng_idx, pz_wplng_idx)
[7]:
initial_state = np.zeros(2 * nn)
initial_state[:nn] = -2.5
initial_state[nn:] = 3.5
[8]:
params = {
"G": 1.0,
"seed": seed,
"initial_state": initial_state,
"weights": weights,
"tau": 90.0,
"eta": -3.5,
"sigma": 0.0,
"iext": 3.1,
"dt": 0.1,
"t_end": 80.0,
"t_cut": 1.0,
"record_step": 1,
"method": "heun",
"output": "output",
}
[9]:
obj = VEP_sde(params)
g_true = 1.0
eta_true = np.ones(nn) * hz_val
eta_true[pz_idx] = pz_val
eta_true[ez_idx] = ez_val
control_true = {"eta": eta_true, "G": g_true}
theta_true = np.hstack(([g_true], eta_true))
theta_true.shape
[9]:
(85,)
[10]:
data = obj.run(par=control_true)
ts = data["x"]
t = data["t"]
t.shape, ts.shape
[10]:
((790,), (84, 790))
[11]:

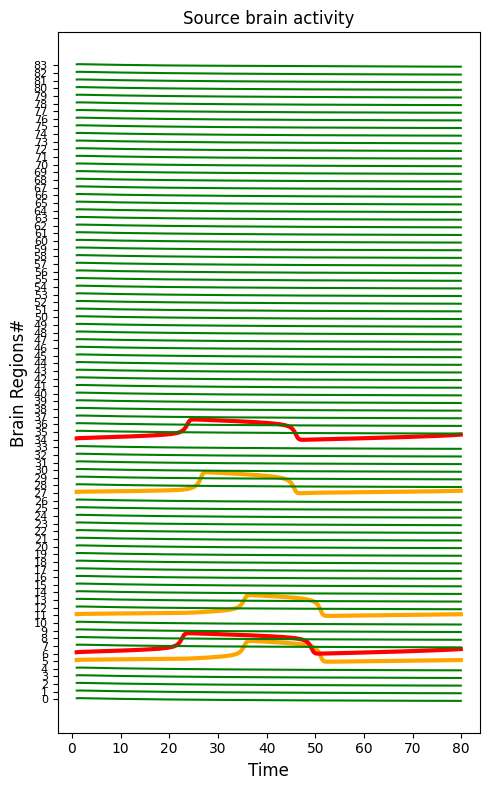

plt.figure(figsize=(5, 8))
for i in range(0, nn):
if i in ez_idx:
plt.plot(t, ts[i, :] + i, "r", lw=3)
elif i in pz_idx:
plt.plot(t, ts[i, :] + i, "orange", lw=3)
else:
plt.plot(t, ts[i, :] + i, "g")
plt.yticks(np.r_[0:nn] - 2, np.r_[0:nn], fontsize=8)
plt.title("Source brain activity", fontsize=12)
plt.xlabel("Time", fontsize=12)
plt.ylabel("Brain Regions#", fontsize=12)
plt.tight_layout()
[12]:
from vbi.feature_extraction.features_settings import *
from vbi.feature_extraction.calc_features import *
[13]:
fs = 1 / (params["dt"]) / 1000
cfg = get_features_by_domain(domain="statistical")
# cfg = get_features_by_given_names(cfg, names=["calc_moments"])
cfg = get_features_by_given_names(cfg, names=["auc"])
report_cfg(cfg)
Selected features:
------------------
■ Domain: statistical
▢ Function: auc
▫ description: Computes the area under the curve of the signal computed with trapezoid rule.
▫ function : vbi.feature_extraction.features.auc
▫ parameters : {'dx': None, 'x': None, 'indices': None, 'verbose': False}
▫ tag : all
▫ use : yes
[14]:
data = extract_features_df([ts], fs, cfg=cfg, n_workers=1)
print(data.values.shape)
100%|██████████| 1/1 [00:00<00:00, 1095.98it/s]
(1, 84)
[15]:
def wrapper(params, control, x0, cfg, verbose=False):
vep_obj = VEP_sde(params)
sol = vep_obj.run(control, x0=x0)
# extract features
fs = 1.0 / params["dt"] * 1000 # [Hz]
stat_vec = extract_features(
ts=[sol["x"]], cfg=cfg, fs=fs, n_workers=1, verbose=verbose
).values[0]
return stat_vec
[16]:
def batch_run(params, control_list, x0, cfg, n_workers=1):
n = len(control_list)
def update_bar(_):
pbar.update()
with Pool(processes=n_workers) as pool:
with tqdm.tqdm(total=n) as pbar:
async_results = [
pool.apply_async(
wrapper,
args=(params, control_list[i], x0, cfg, False),
callback=update_bar,
)
for i in range(n)
]
stat_vec = [res.get() for res in async_results]
return stat_vec
[17]:
x_ = wrapper(params, control_true, initial_state, cfg)
print(x_.shape)
(84,)
[18]:
num_sim = 10_000
num_workers = 10
eta_min, eta_max = -5.0, -1.0
gmin, gmax = 0.0, 2.0
[19]:
from vbi.utils import BoxUniform
[20]:
prior_min = [gmin] + [eta_min] * nn
prior_max = [gmax] + [eta_max] * nn
prior = BoxUniform(low=prior_min, high=prior_max, seed=seed)
theta = prior.sample((num_sim))
[21]:
control_list = [{'eta': theta[i, 1:], "G": theta[i, 0]} for i in range(num_sim)]
[22]:
stat_vec = batch_run(params, control_list, initial_state, cfg, num_workers)
100%|██████████| 10000/10000 [00:29<00:00, 343.79it/s]
[23]:
from sklearn.preprocessing import StandardScaler
scalar = StandardScaler()
stat_vec = scalar.fit_transform(np.array(stat_vec))
np.savez(join(path, "data.npz"), theta=theta, stat_vec=stat_vec)
[24]:
xo = wrapper(params, control_true, initial_state, cfg)
xo = scalar.transform(xo.reshape(1, -1))
print(theta_true.shape, xo.shape)
(85,) (1, 84)
[25]:
np.savez(join(path, "data_xo.npz"), theta=theta_true, xo=xo)
[26]:
import autograd.numpy as anp
rng = anp.random.RandomState(seed)
maf_estimator = MAFEstimator(n_flows=10, hidden_units=128)
maf_estimator.train(theta, stat_vec, n_iter=1000, learning_rate=2e-4)
print("best epoch:", maf_estimator.best_epoch, "best val:", maf_estimator.best_val_loss)
samples = maf_estimator.sample(xo, n_samples=5000, rng=rng)[0]
Inferred dimensions: param_dim=85, feature_dim=84
Training: 0%| | 0/1000 [00:00<?, ?it/s]Training: 51%|█████▏ | 514/1000 [21:25<20:15, 2.50s/it, patience=20/20, train=-117.6100, val=-65.5378]
best epoch: 494 best val: -66.05994788316926
[27]:
with open(join(path, "posterior.pkl"), "wb") as f:
pickle.dump(maf_estimator, f)
# with open(join(path, "posterior.pkl"), "rb") as f:
# maf_estimator = pickle.load(f)
[28]:

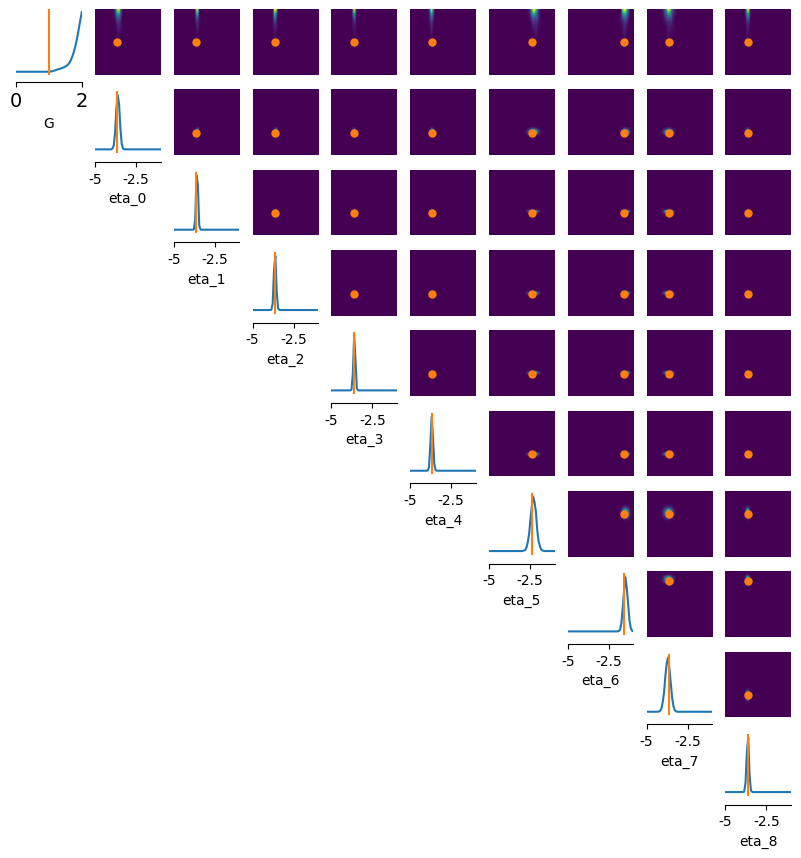

limits = [[i, j] for i, j in zip(prior_min[:10], prior_max[:10])]
points = np.array([[g_true] + eta_true[:10].tolist()])
fig, ax = pairplot_numpy(
samples[:, :10],
limits=limits,
figsize=(10, 10),
points=points.reshape(1, -1),
labels=["G"]+ [f"eta_{i}" for i in range(9)],
offdiag="kde",
diag="kde",
points_colors="r",
samples_colors="k",
points_offdiag={"markersize": 10},
)
ax[0, 0].tick_params(labelsize=14)
ax[0, 0].margins(y=0)
fig.savefig(join(path, "triangleplot.jpeg"), dpi=300)
[29]:
def plot_eta(samples, eta_true, ax):
prior = np.random.uniform(-5, -1, size=(10000, 1))
positions = np.arange(1, eta_true.shape[0]+1)
parts = ax.violinplot(samples, positions=positions, widths=0.7, showmeans=1, showextrema=1)
ax.plot(np.r_[1:eta_true.shape[0]+1], eta_true, 'o', color='g', alpha=0.9, ms=6)
parts_prior = ax.violinplot(prior, positions=[0], widths=0.7, showmeans=1, showextrema=1)
ax.set_ylabel('Density ' + r'${\eta_i}$', fontsize=18)
ax.set_xlabel('Regions', fontsize=18)
ax.tick_params(labelsize=14)
for pc in parts['bodies']:
pc.set_facecolor('red')
pc.set_edgecolor('k')
pc.set_alpha(0.5)
pc.set_linewidth(0.5)
for pc in parts_prior['bodies']:
pc.set_facecolor('blue')
pc.set_edgecolor('k')
pc.set_alpha(0.5)
pc.set_linewidth(0.5)
parts['cbars'].set_color('k')
parts['cbars'].set_linewidth(1)
parts_prior['cbars'].set_color('k')
parts_prior['cbars'].set_linewidth(1)
[30]:

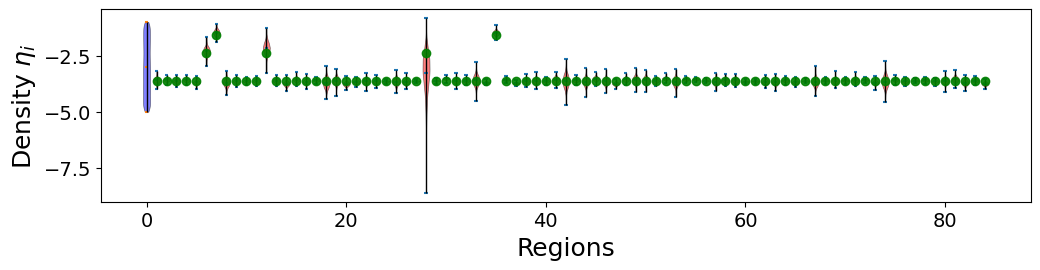

fig, ax = plt.subplots(1, figsize=(12, 2.5))
plot_eta(samples[:, 1:], eta_true, ax)
[31]:
from vbi.utils import posterior_peaks_numpy
[32]:
peaks = posterior_peaks_numpy(samples)
[33]:
c_obs = {"eta": eta_true, "G": g_true}
c_ppc = {"eta": peaks[1:], "G": peaks[0]}
[34]:
obj = VEP_sde(params)
data_obs = obj.run(par=c_obs)
data_ppc = obj.run(par=c_ppc)
[35]:

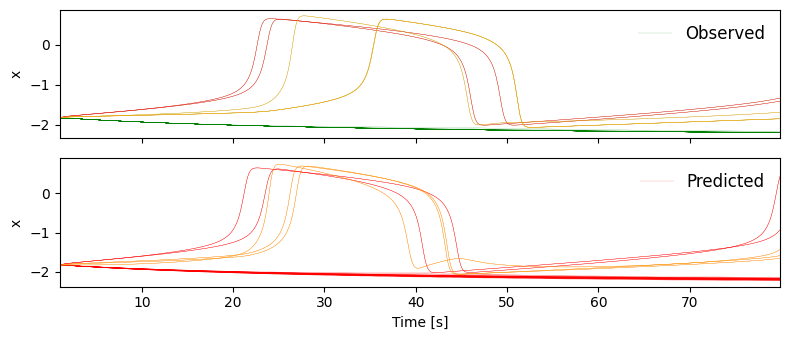

fig, ax = plt.subplots(2, figsize=(8, 3.5), sharex=True)
ax[0].plot(data_obs["t"], data_obs["x"].T, "g", lw=0.1)
ax[0].plot(data_obs["t"], data_obs['x'][ez_idx].T, "r", lw=0.3)
ax[0].plot(data_obs["t"], data_obs['x'][pz_idx].T, "orange", lw=0.3)
ax[1].plot(data_ppc["t"], data_ppc["x"].T, "r", lw=0.1);
ax[1].plot(data_ppc["t"], data_ppc['x'][ez_idx].T, "r", lw=0.3)
ax[1].plot(data_ppc["t"], data_ppc['x'][pz_idx].T, "orange", lw=0.3)
ax[0].legend(['Observed'], loc="upper right", fontsize=12, frameon=False)
ax[1].legend(['Predicted'], loc="upper right", fontsize=12, frameon=False)
ax[1].set_xlabel("Time [s]");
ax[0].set_ylabel(r"x");
ax[1].set_ylabel(r"x");
ax[0].margins(x=0)
fig.tight_layout()
plt.savefig(join(path, "observed_vs_predicted.png"), dpi=300);
[36]:
np.savez(join(path, "data_ppc.npz"),
peaks=peaks,
t=data_obs["t"],
x_obs=data_obs["x"], x_ppc=data_ppc["x"],
eta_true=[g_true] + eta_true.tolist()
)
[37]:
from vbi.utils import posterior_shrinkage_numpy, posterior_zscore_numpy
[38]:
sh = posterior_shrinkage_numpy(theta, samples)
zs = posterior_zscore_numpy(np.array([g_true] + eta_true.tolist()), samples)
[39]:
np.savez(join(path, "shrinkage_zscore.npz"), sh=sh, zs=zs)
[40]:
auc_obs = wrapper(params, c_obs, initial_state, cfg, verbose=True)
auc_ppc = wrapper(params, c_ppc, initial_state, cfg, verbose=True)
100%|██████████| 1/1 [00:00<00:00, 1399.50it/s]
100%|██████████| 1/1 [00:00<00:00, 1334.92it/s]

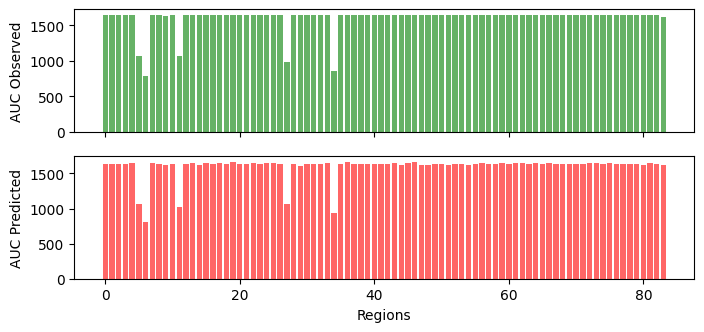

bar plot auc_obs
[41]:
fig, ax = plt.subplots(2, figsize=(8, 3.5), sharex=True)
ax[0].bar(np.arange(auc_obs.shape[0]), -auc_obs, color='g', alpha=0.6)
ax[1].bar(np.arange(auc_ppc.shape[0]), -auc_ppc, color='r', alpha=0.6);
ax[1].set_xlabel("Regions");
ax[0].set_ylabel(r"AUC Observed");
ax[1].set_ylabel(r"AUC Predicted");
plt.savefig(join(path, "auc_observed_vs_predicted.png"), dpi=300);
[42]:
np.savez(join(path, "auc.npz"), auc_obs=auc_obs, auc_ppc=auc_ppc)
