Reduced Wong-Wang model - PyTorch¶
Equivalent to the Numba notebook, adapted for PyTorch implementation
[1]:
import os
import vbi
import warnings
import numpy as np
import pandas as pd
from cmaes import CMA
import networkx as nx
from tqdm import tqdm
from copy import deepcopy
from vbi.utils import timer
import multiprocessing as mp
import matplotlib.pyplot as plt
from multiprocessing import Pool
from vbi.models.pytorch.rww import RWW_sde
from vbi.feature_extraction.features_utils import get_fcd
from vbi.models.pytorch.rww_sde_kong import WW_SDE_KONG
[2]:
seed = 42
warnings.simplefilter("ignore")
np.random.seed(seed)
[3]:
LABESSIZE = 10
plt.rcParams["axes.labelsize"] = LABESSIZE
plt.rcParams["xtick.labelsize"] = LABESSIZE
plt.rcParams["ytick.labelsize"] = LABESSIZE
[4]:
path = "output/r_ww_sde_pytorch_"
os.makedirs(path, exist_ok=True)
Check compatibility with
rww_sde_kong:
[5]:
obj = WW_SDE_KONG()
params = obj.get_default_params()
# convert iterables to numpy arrays float32
for key in params.keys():
if hasattr(params[key], "__len__") and not isinstance(params[key], str):
params[key] = np.array(params[key]).astype(np.float32)
for key in params.keys():
# print key and value shape if is iterable else print value
if hasattr(params[key], "__len__") and not isinstance(params[key], str):
print(f"{key}: {np.array(params[key]).shape}, type: {(params[key].dtype)}")
else:
print(f"{key}: {params[key]}")
# --- update default parameters ---
par = RWW_sde.get_default_parameters()
common_keys = set(par.keys()).intersection(set(params.keys()))
different_keys = set(par.keys()).symmetric_difference(set(params.keys()))
print(common_keys)
print(different_keys)
for key in common_keys:
par[key] = params[key]
par['sigma'] = params['s']
par['I_ext'] = params['I0']
par['gamma'] = params['gamma_s']
par['integration_method'] = 'euler'
par['device'] = 'cuda'
par['RECORD_BOLD'] = True
par['warmup_steps'] = 1000
G: 6.270336254908696
J: 0.2609
w: (68,), type: float32
s: (68,), type: float32
I0: (68,), type: float32
a: 270.0
b: 108.0
d: 0.154
tau_s: 0.1
gamma_s: 0.641
t_end: 300.0
t_cut: 120.0
tr: 0.72
dt: 0.01
n_sim: 1
weights: (68, 68), type: float32
device: cpu
dtype: torch.float64
{'a', 'weights', 'J', 'dt', 'G', 'n_sim', 't_end', 'tau_s', 'device', 't_cut', 'b', 'tr', 'd', 'w'}
{'integration_method', 'warmup_steps', 'I0', 'sigma', 'seed', 'gamma', 'I_ext', 'gamma_s', 'dtype', 'RECORD_BOLD', 's'}
[6]:
def wrapper(par, **kwargs):
"""Wrapper function to run the WW_sde model with given parameters."""
par = deepcopy(par)
sde = RWW_sde(par)
verbose = kwargs.get("verbose", False)
record_neural = kwargs.get("record_neural", False)
neural_subsample = kwargs.get("neural_subsample", 5)
data = sde.run(
verbose=verbose, record_neural=record_neural, neural_subsample=neural_subsample
)
bold_d = data["bold_d"].cpu().numpy() # Convert to numpy
bold_t = data["bold_t"].cpu().numpy()
neural_d = None
neural_t = None
if record_neural:
neural_d = data["S"].cpu().numpy()
neural_t = data["t"].cpu().numpy()
return bold_t, bold_d, neural_t, neural_d
[7]:
ww = RWW_sde(par)
print(ww)
==========================================================================================
Reduced Wong-Wang Neural Mass Model (PyTorch)
==========================================================================================
Network: 68 nodes, 1 parameter sets
Device: cuda
Integration method: euler
Neural Model Parameters:
------------------------------------------------------------------------------------------
Parameter | Definition | Value/Shape
------------------------------------------------------------------------------------------
w | Recurrent strength | shape [68, 1]
I_ext | External input | shape [68, 1]
G | Global coupling | 6.27034
sigma | Noise amplitude | shape [68, 1]
J | Synaptic coupling | 0.2609
a | Firing rate slope | 270
b | Firing rate threshold | 108
d | Firing rate scaling | 0.154
tau_s | Synaptic time constant | 0.1
gamma | Synaptic gating | 0.641
------------------------------------------------------------------------------------------
weights | Structural connectivity | shape [68, 68]
Simulation Settings:
------------------------------------------------------------------------------------------
Parameter | Definition | Value
------------------------------------------------------------------------------------------
t_cut | Warm-up time (dropped) | 120.0 s
t_end | Total simulation time | 300.0 s
t_record | Recording time (after drop) | 180.0 s
dt | Integration time step | 0.01 s
tr | BOLD sampling time (TR) | 0.72 s
warmup_steps | Number of warm-up steps | 1000
RECORD_BOLD | Record BOLD signals | True
Hemodynamic Parameters (Balloon-Windkessel):
------------------------------------------------------------------------------------------
Parameter | Definition | Value
------------------------------------------------------------------------------------------
beta | Rate constant (flow/volume) | 0.65
gamma | Rate constant (elimination) | 0.41
tau | Hemodynamic transit time | 0.98
alpha | Grubb exponent | 0.33
p_constant | Resting oxygen extraction | 0.34
v_0 | Resting blood volume fraction | 0.02
k_1 | Signal coefficient | 4.10342
k_2 | Signal coefficient | 0.581832
k_3 | Signal coefficient | 0.53
==========================================================================================
[8]:
ww = RWW_sde(par)
bold_t, bold_d, neural_t, neural_d = wrapper(
par,
verbose=True,
record_neural=True,
neural_subsample=2
)
Warm-up ...: 0%| | 0/1000 [00:00<?, ?it/s]Warm-up ...: 100%|██████████| 1000/1000 [00:01<00:00, 837.67it/s]
Simulating ...: 100%|██████████| 30001/30001 [00:53<00:00, 555.63it/s]
BOLD simulation completed in 55.20 seconds
[9]:

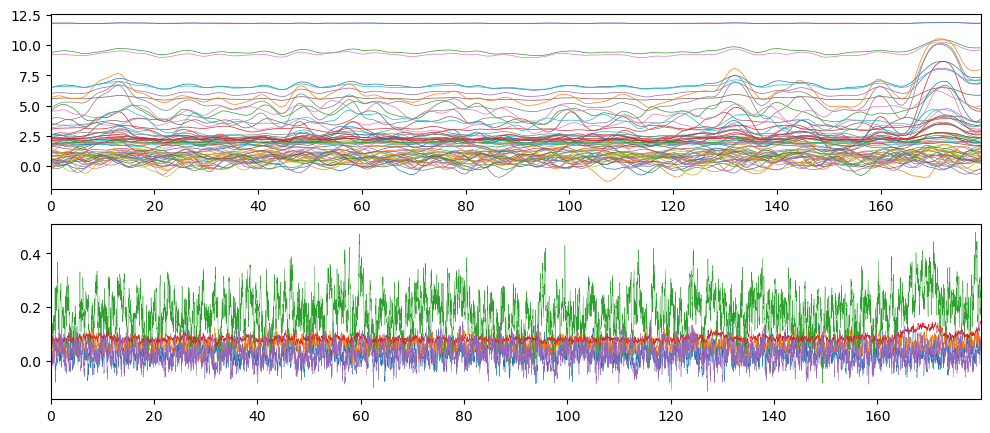

print(bold_d.shape, bold_t.shape, neural_d.shape, neural_t.shape, np.isnan(bold_d).any()) # (nnodes, nsim, nsamples)
fig, ax = plt.subplots(2, figsize=(12, 5))
ax[0].plot(bold_t, bold_d[:,0,:].T, lw=0.5, alpha=1.0);
ax[0].margins(x=0)
ax[1].plot(neural_t, neural_d[:5,0,:].T, lw=0.3, alpha=1.0);
ax[1].margins(x=0)
plt.show()
(68, 1, 250) (250,) (68, 1, 9000) (9000,) False
[10]:
def compute_cost(
bold_d,
fc_target=None,
fcd_target=None,
add_cost_fc=True,
add_cost_fcd=True,
zscore_fc=False,
zscore_fcd=False,
):
"""Compute the cost between simulated and target BOLD signals.
Parameters
----------
bold_d : np.ndarray
Simulated BOLD data. Shape: (n_timepoints, n_regions)
"""
# Compute costs here
cost = 0.0
return cost
def wrapper(par, **kwargs):
"""Wrapper function to run the WW_sde model with given parameters."""
par = deepcopy(par)
sde = RWW_sde(par)
verbose = kwargs.get("verbose", False)
record_neural = kwargs.get("record_neural", False)
get_cost = kwargs.get("get_cost", False)
neural_subsample = kwargs.get("neural_subsample", 5)
data = sde.run(
verbose=verbose, record_neural=record_neural, neural_subsample=neural_subsample
)
bold_d = data["bold_d"].cpu().numpy() # Convert to numpy
bold_t = data["bold_t"].cpu().numpy()
neural_d = None
neural_t = None
if record_neural:
neural_d = data["S"].cpu().numpy()
neural_t = data["t"].cpu().numpy()
if not get_cost:
return bold_t, bold_d, neural_t, neural_d
else:
add_cost_fc = kwargs.get("add_cost_fc", True)
add_cost_fcd = kwargs.get("add_cost_fcd", True)
zscore_fc = kwargs.get("zscore_fc", False)
zscore_fcd = kwargs.get("zscore_fcd", False)
cost = compute_cost(
bold_d,
fc_target=None,
fcd_target=None,
add_cost_fc=add_cost_fc,
add_cost_fcd=add_cost_fcd,
zscore_fc=zscore_fc,
zscore_fcd=zscore_fcd,
)
return cost
[11]:
# # Gs = np.arange(0.1, 2.3, 0.05)
# Gs = np.array([0.1])
# par = dict(
# weights=weights,
# dt=2.5, # s
# t_end=0.5 * 60 * 1000.0, # ms
# t_cut=0.1 * 60 * 1000.0, # ms
# G=Gs,
# sigma=0.05, #0.05
# I0=0.05, #0.05
# tr=300.0, # s
# device="cpu",
# n_sim=len(Gs),
# integration_method="heun",
# )
# ww = RWW_sde(par)
# bold_t, bold_d, neural_t, neural_d = wrapper(
# par,
# verbose=True,
# record_neural=True,
# neural_subsample=2
# )
[ ]:
